FX 4.9L | SFF Cases Custom

Support page for of

FX 4.9L cases

Assembling a computer requires certain knowledge and skills! This brief instruction shows the assembly sequence and is designed for the user who has already assembled computers.

And also, the case in these photos may be slightly different from what you have, it happens, I make some changes in almost every batch.

Preparation.

Make sure your assembly components match the chassis specifications.

Remove the covers by unscrewing the screws and sliding them down.

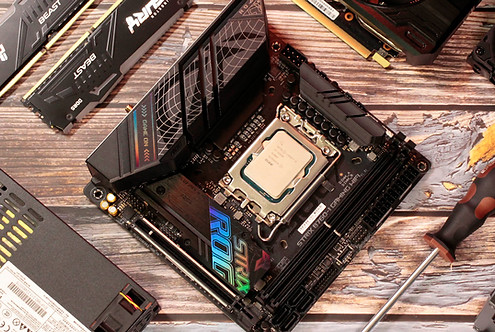

Installing the motherboard (MB) .

The case supports MB mini-ITX format. Read the instructions for the motherboard. Install everything you need on it (Processor, CPU cooler, RAM, NVMe drive, if used. Follow the instructions of the component manufacturer). Install the plug in the case if it is not fixed on the motherboard before mounting the MB. Connect the PCIe riser cable to the MB if you plan to install a video card, as well as the power button connector. Very carefully put the MB into the case, placing it on the racks. Attach the MB to the case using screws and a magnetic screwdriver.

Installation of the Power Supply Unit (PSU).

The case supports the installation of flex 1U format PSU. If your PSU has a modular cable connection, we recommend that you connect the necessary ones before installation in the case. Install the PSU in the case and fasten with screws. Connect the cables to the motherboard.

Installing a video card.
Skip this step if you don't plan to use a graphics card.

Unscrew the fastening corner from the case. Connect the additional power supply of the video card, if provided by the video card manufacturer, before installing it (see the instructions for installing your video card in the video card delivery kit). Insert the video card into the case, install the cable in the PCIe x16 riser connector as far as it will go. Screw the video card to the case using the mounting bracket.

Installation of 2.5" Storage .
Skip this step if you don't plan to use a 2.5" drive.

Connect the interface to the drive. Screw the drive to the case under the video card.

The final collection.

Carefully route all cables using nylon cable ties from the PDA. Check that all cables are connected. Install the covers on the body and fasten with screws.
